Od18xId3.5x7mm N38 Ni Neodymium Ring
Od18xId3.5x7mm N38 Ni Neodymium Ring

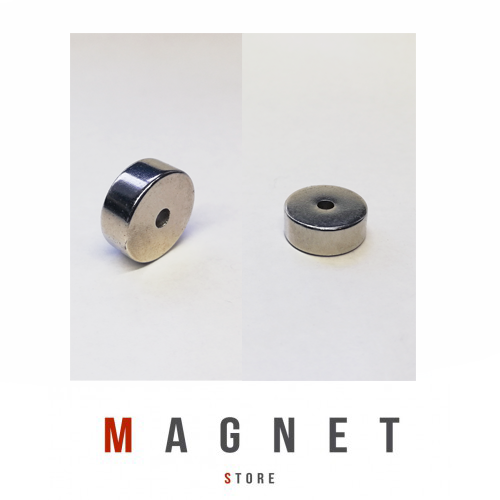

Od18xId3.5x7mm N38 Ni Neodymium Ring Magnet
Ring magnets, as their name suggests, have a circular shape and a hollow center. The circular shape is like that of disc magnets, which are similarly popular due to their versatility and utility. The hollow cutout at the center opens this magnet up to an enormous range of possibilities, and makes them uniquely well suited for many different applications.
Rare earth neodymium magnets, also known as NdFeB magnets or Neo magnets, are made from an alloy of neodymium, iron and boron. They have excellent magnetic properties and are extremely strong for their small size. Neodymium magnets are permanent, and have a high maximum magnetic energy.
PRODUCT SPECIFICATIONS:
Material: | Neodymium Magnets (NdFeB) |
Dimensions: | 18mm outer dia x 3.5mm inner dia 7mm thick. |
Shape: | Ring / Round |
QTY: | 01 Pcs |
Coating: | Ni-Cu-Ni (Nickel) |
Grading: | N38 |
Tolerance: | +/- 0.1 |
Maximum temperature: | N38 grading magnets can work in an environment that has a maximum operating temperature no greater than 80°C. |
Pulling Force: | 7.48.kg |
Colour: | Silver |
Direction of Magnetism: | Through the thickness. |
Image: Direction of magnetism
Pros and cons:
Pros: -Best power to weight ratio of all magnets. -High resistance to demagnetization. |
Cons: |
Applications of Neodymium Magnet:
Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio etc. |
Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter sound meter, a reed switch, sensors. |
Machinery and equipment: magnetic separation, magnetic crane, magnetic machinery. |
Other industries: magnetized Wax, pipe descaling, magnetic fixture, automatic mah-jong machine, magnetic locks, doors and for windows magnetic, magnetic luggage, leather magnetic toys, magnetic tools, gifts, craft project, diy, jewelry, office and packaging. |
________________________________________
Important warnings and tips for using magnets.
Please make sure you read and take care when using magnets.
How to separate magnets safely:
To separate magnets, use a sliding motion, never try pulling magnets apart as it will cause them to snap together causing injuries. If you have larger stronger magnets use a wooden table or desk and overhang one magnet. Apply strong downward pressure to separate magnet from the other magnets. Once separated, keep moving the magnet to a safe distance. Magnets attract to each other, handle with care:If two magnets are placed loosely apart, they could leap together unexpectedly, with extreme speed and force, which could shatter and break both the magnets and could injure your finger if it is caught in between. Flying chips are sharp and could be a danger to your eyes. Handle only one magnet at a time. Nickel Allergies:Some of our magnets have a nickel coating. Prolonged contact with skin may cause irritation. |
Warning for children using magnets:
DO NOT allow children to play with magnets unsupervised and do not allow children to handle stronger magnets as they are powerful and will cause injury and could be fatal if swallowed. Magnets are not toys! Magnetic Sensitive Items: -Media: Keep away from credit cards and other magnetically stored media. -Pacemakers: Keep magnets away from pacemakers. The operation of heart pacemakers may be affected by the proximity of a magnet. Magnets can set a pacemaker working in a way that is not suitable for the user and that might affect their health.
|
For image illustrations click here
