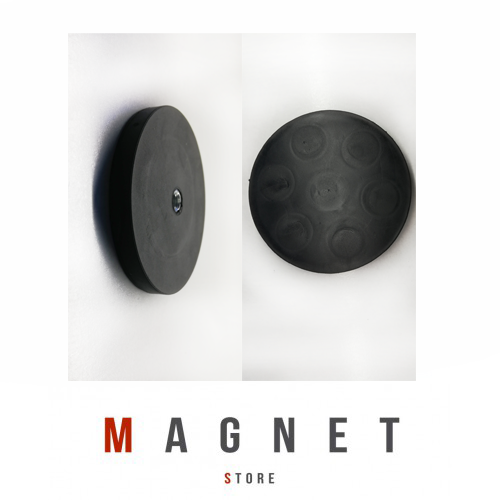

Gripper Magnet 66x8.5mm M6
Gripper Magnet 66x8.5mm M6
Couldn't load pickup availability
Gripper Magnet 66x8.5mm M6
Neo grippers are ideal for holding vinyl graphics, lights, or signs in place on vehicles and the rubber coating ensures safe contact when applied without causing damage and scratching.
These magnets are manufactured with a female thread for easy attachment and provide excellent adhesion to thin and thick plates.
Commonly used on tracking devices.
PRODUCT SPECIFICATIONS:
| Material: | Neodymium Magnets (NdFeB) |
| Dimensions: | 66mm x 8.5mm with 6mm flat female thread |
| Shape: | Round / Circle |
| QTY: | 01 Pcs |
| Coating: | Ni-Cu-Ni (Nickel) + Rubber coating |
| Grading: | N35 |
| Tolerance: | +/- 0.1 |
| Maximum temperature: | N35 grading magnets can work in an environment that has a maximum operating temperature no greater than 80°C. |
| Pulling Force: | 18 kg |
| Colour: | Black |
| Direction of Magnetism: | Through the thickness. |
Image: Direction of magnetism
Pros and cons:
|
Pros: -Rubber coating provides protection against rust. -Best power to weight ratio of all magnets. -The rubber casing protects the magnet from damage. |
|
Cons: -Magnetism starts to decrease (and can be permanently lost) at 80°C. (This depends on the handling of magnets.) -Low corrosion resistance. (If the plating is damaged) -Will rust when exposed to wet elements. -Brittle (May break, crack, or chip upon sudden collisions with other magnets or metals.) -Drilling magnets causes magnet to shatter. (Do not drill magnets as friction can cause fire / explosion due to flammable material.) -Often higher cost choice |
Applications of Gripper Magnets:
| Tracking devices |
| Hanging items |
| Mounting article, used in point of sale displays, false ceilings, light fixtures and fittings and general holding applications |
| Hobby and leisure |
________________________________________
Please note that only small quantities of the stock are loaded on the website, for higher quantities please contact us.
