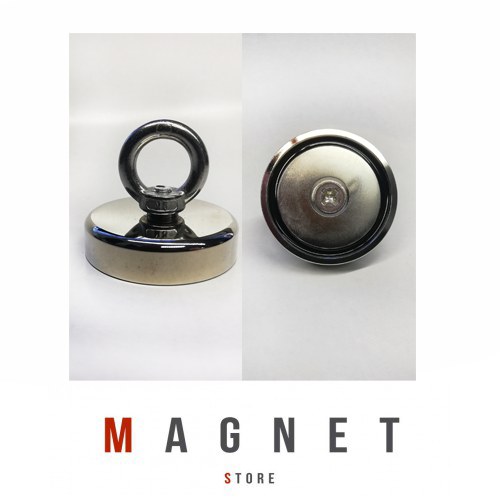

75mm Neodymium Pot Magnet with Eyebolt
75mm Neodymium Pot Magnet with Eyebolt
Couldn't load pickup availability
75mm Pot Magnet with Eyebolt
Pot magnets with Eyebolt are powerful mounting magnets. These magnetic assemblies are built with N35 neodymium disc magnets embedded in a steel pot. The steel casing creates a strong vertical magnetic pull force (especially on a flat iron or steel surface), concentrating the magnetic force and directing it to the contact surface.
High in magnetic strength for their small size, neodymium pot magnets are ideal for all types of applications where high strength magnets are required. They are often used for heavy duty holding, mounting, and fixing purposes in workstations, classrooms, offices, warehouses, for pop displays, as retrieval magnets and more.
PRODUCT SPECIFICATIONS:
| Material: | Neodymium Magnets (NdFeB) |
| Dimensions: | 75mm diameter |
| Shape: | Round / Circle |
| QTY: | 01 Pcs |
| Coating: | Ni-Cu-Ni (Nickel) + Mild Steel Casing |
| Grading: | N35 |
| Tolerance: | +/- 0.1 |
| Maximum temperature: | N35 grading magnets can work in an environment that has a maximum operating temperature no greater than 80°C. |
| Pulling Force: | 250 kg (on a 2cm thick steel plate) |
| Colour: | Silver |
| Direction of Magnetism: | Through the thickness. |
Image: Direction of magnetism
Pros and cons:
|
Pros: -Best power to weight ratio of all magnets. -The mild steel casing protects the magnet from damage. |
|
Cons: -Magnetism starts to decrease (and can be permanently lost) at 80°C. (This depends on the handling of magnets.) -Low corrosion resistance. (If the plating is damaged) -Will rust when exposed to wet elements. -Brittle (May break, crack, or chip upon sudden collisions with other magnets or metals.) -Drilling magnets causes magnet to shatter. (Do not drill magnets as friction can cause fire / explosion due to flammable material.) -Often higher cost choice |
Applications of Pot Magnets:
| Fishing for lost objects |
| Hanging items |
| Mounting article, used in point of sale displays, false ceilings, light fixtures and fittings and general holding applications |
| Hobby and leisure |
________________________________________
Please note that only small quantities of the stock are loaded on the website, for higher quantities please contact us.
