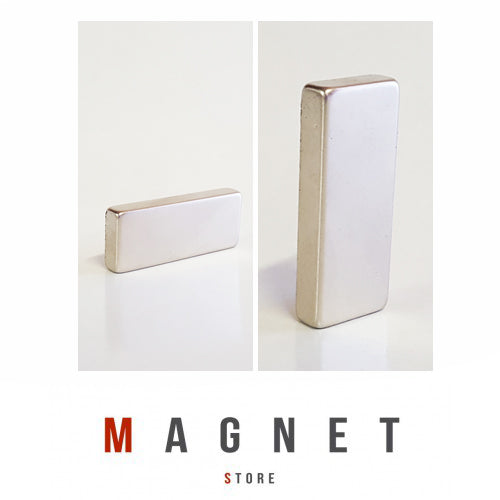

50x20x8mm N38 Ni Neodymium Block
50x20x8mm N38 Ni Neodymium Block
50x20x8mm N38 Ni Neodymium Block
Neodymium blocks are strong magnet and are very useful for hanging or holding square, rectangular or similar shaped metal objects as well as a wide range of other magnetic applications.
Rare earth neodymium magnets, also known as NdFeB magnets or Neo magnets, are made from an alloy of neodymium, iron and boron. They have excellent magnetic property and are extremely strong for their size. Neodymium magnets are permanent, and have a high maximum magnetic energy.
PRODUCT SPECIFICATIONS:
Material: | Neodymium Magnets (NdFeB) |
Dimensions: | 50mm length x 20mm height x 8mm thickness |
Shape: | Block |
QTY: | 01 Pcs |
Coating/Plating: | Ni-Cu-Ni (Nickel) |
Grading: | N38 |
Tolerance: | +/- 0.1 |
Maximum temperature: | N38 grading magnets can work in an environment that has a maximum operating temperature no greater than 80°C. |
Pulling Force: | 18.07kg |
Colour: | Silver |
Direction of Magnetism: | Through the thickness. |
Image: Direction of magnetism
Pros and cons:
Pros: -Best power to weight ratio of all magnets. -High resistance to demagnetization. |
Cons: |
Applications of Neodymium Magnet:
Acoustic field: the speaker, receiver, microphone, alarm, stage audio, car audio etc. |
Electronics: permanent magnetic actuator vacuum circuit breakers, magnetic relays, meter sound meter, a reed switch, sensors. |
Machinery and equipment: magnetic separation, magnetic crane, magnetic machinery. |
Other industries: magnetized Wax, pipe descaling, magnetic fixture, automatic mah-jong machine, magnetic locks, doors and for windows magnetic, magnetic luggage, leather magnetic toys, magnetic tools, gifts, craft project, diy, jewelry, office and packaging. |
________________________________________
Important warnings and tips for using magnets.
Please make sure you read and take care when using magnets.
How to separate magnets safely: Magnets attract to each other handle with care: Some of our magnets have a nickel coating. Prolonged contact with skin may cause irritation. |
Warning for children using magnets: Magnetic Sensitive Items: |
For image illustrations click here
Liability:
Magnet Store does not accept any responsibility for damaged caused by improper handling of these magnets. These magnets have a surprising amount of magnetic power and if handled incorrectly can be dangerous. With the purchase of these magnets, you confirm you have read and understood the following warnings. If you are giving magnets as a gift, please be sure to include this information sheet in the package.
50mm long x 20mm wide x 8mm thick Neodymium block magnet;
N38 Grading; Nickel coated; Direction of magnetism: Through the thickness.
Please note that only small quantities of the stock are loaded on the website, for higher quantities please contact us.
